FEATURES

• All LED Lights
• Hutch 9700 series three leaf spring suspension, 22,400 LB GAWR*
• 5” Round 25,000 LB axle with oil bath hubs
• Two speed 50,000 LB lift capacity landing gear, 10 x 10 sand shoes
• 10 Hole Hub piloted wheels with 11R22.5 Tubeless Radial Tires
• 16 1/2 x 7 quick change brakes, Haldex ABS Brake System*
• 30/30 brake chambers
• GVWR: 58,000 LB at 20’, 65,000 LB at 40’
• 30” Kingpin Setting
• Grade 50, 12” x 19 LB/ft. I-BEAM Construction
• Tare weight approximately 7,500 LB
• Slider mechanism: air-operated locking pins lock to hold 20’ or 40’ ISO Container

PRODUCT

• Feature: New Chassis designed for the 21st century
• Designed for repeated use in transportation of intermodal containers
• Meets DOT requirements
• Maximum Gross Weight: 58,000 LB at 20’, 65,000 LB at 40’
• Standard US VIN Plate
• Tare Weight: 7,500 LB

GEOMETRY

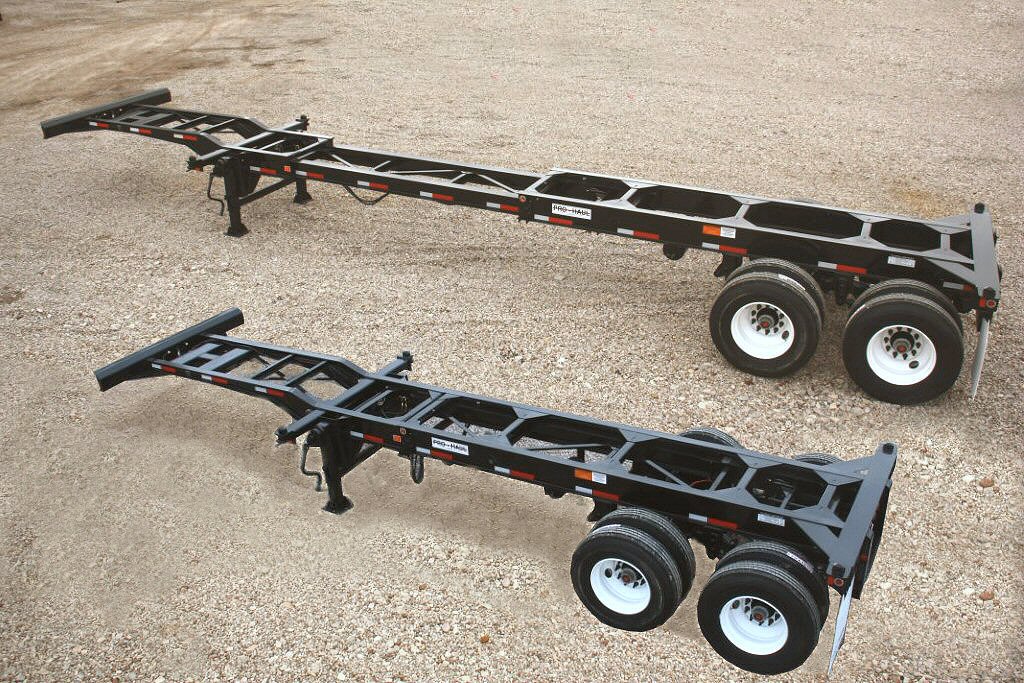

• Overall Length & Type: 30’ closed and 40’10” extended, Gooseneck Frame
• Slider Mechanism: Air-operated locking pins
• Frame Bogie Type: Fixed Tandem Axle Bogie (2-Axle) with 25,000 LB axles
• Overall Frame Width: 96” over Bolster
• Main Frame Width: 40”
• Maximum Rear Height: Approximately 48”
• King Pin Location: 24” from the rear face of the front bolster

TIRES & WHEELS

• Tires: Factory Furnished
• Tire Manufacturer: Atlas Tire*
• Tire Size: 11R22.5
• Tire Infl ation System: None
• Wheel Size: 8.25 x 22.5
• Hub Type: Hub Piloted for disc wheels
• Wheel Color: White

UPPER COUPLER

• Pick-Up Plate: 5/16” thick pick-up plate with 2” diameter drain holes

LANDING GEAR

• L/Gear Shoes: 10” x 10” sand shoe low profile
• L/Gear Ground Clearance: Approximately 12” Ground Clearance
• Landing Gear: Butler 50,000 LB lift/180,000 LB static with 2 speed gearbox*
• Crank Handle: Located at Driver’s Side

FRAME

• Main Beam (Rear): W12”x19 LB/ft I-Beam Gr. 50
• Main Beam (Center): W8”x18 LB/ft I-Beam Gr. 50
• G/N Beam & Height: Fabricated H-Beam, standard 4 7/8” (120 mm) Gooseneck Height
• Cross Member: Fabricated channel cross member with triangle gusset, A572GR50
• Cross Member Thickness: 3/16” with 1/4” cross members in rear
• L/G Support Bracket: 1/4” box type bracket with 4” channel brace
• Rear Bolster Gusset Spec: 3/16” with bending rib
• Front Bolster Spec: 6” wide x 9 1/8” deep. Tapered Bolster for container guiding.
• Front Bolster Material: Channel 1/4” (A572GR50)
• Front Bolster Locking Device: Locking Pin Type
• Front Locking Spec: Pin-Lock
• Rear Bolster Spec: 8” wide x 7 1/4” deep
• Rear Bolster Channel Material: 1/4” (A572GR50)
• Rear Bolster Top Plate Material: 3/8” (A572GR50)
• Rear Bolster Locking Device: Non-retractable twistlocks, Butler 1101-1206*
• License Plate Bracket: Standard Install Location
• Mud flaps: 24”x30” white factory furnished mud flaps mounted on vertical steel flange with horizontal member
• Rear Under Ride Bumper: Weld on Vertical steel flange with horizontal member
• Horizontal Member: 4” Tube horizontal step guard

RUNNING/SUSP

• Axle Spacing: 49” Axle Spacing
• Axle ABS System: Tandem Axle with 2S1M ABS System
• Suspension Spec: Hutchens Undermount Hanger, H-9700*
• Spring Spec: 3 Leaf - 354-00 Heavy Duty Spring
• Hutch 9700 series three leaf spring suspension, 22,400 LB GAWR*
• Axle Supplier: Butler*
• Axle-General Spec: Axle - Tandem Axle (2) Axle with 2S1M
• Axle-Track Length: 71 1/2”
• Axle-Wall Thickness: 5/8”
• Axle Spindle: Tapered Spindle
• 5” Round 25,000 LB axle with oil bath hubs
• Brake Lining: 16 1/2” x 7” Rockwell Q Type shoes*
• Brake Control System: 16 1/2” x 7” quick change brakes, 2S/1M Haldex ABS*
• Air Tank: (2) 9.5x27 air tanks
• Air Line: Black Gates Nylon DOT Tubing
• Air Hose: Standard Hose Application
• Slack Adjuster: Meritor Style Auto - 5 1/2”, 28 Spline*
• Brake Chamber: TGI 30/30 Standard Stroke*
• Brake Chamber Stroke Length: Standard Stroke Length
• Brake Chamber Other Spec: Manufacturer’s Standard Components
• Wheel: 10 Stud Hub Piloted Outboard Iron Hub with 16 1/2” x 7” cast steel brake drum
• Lubrication Spec: Shell Spirax 80w-90*
• Wheel Seals: Stemco*
• Hub Cap: Stemco metal 340-4009 oil type hub cap*
• Hubodometer: None
• Slack Adjusters: Automatic
• Gladhands: Velvac Gladhands, Service 035042 & Emergency 035045*
• Gladhand Location : Located at Center of Front Bolster

ELEC/AIR

• All LED Lights
• Harness-Chassis: Molded Truck Lite 88 Series Harness*
• 7-Way Connector Pollack 7-Way without Circuit Breakers*
• Front Marker Lights: Trucklite 3050A LED Rivet Mounting*
• Mid-Marker Lights: Trucklite 3050A LED Rivet Mounted/Trucklite 6050A MidTurn with TL 99152 WIDE TURN LENS*
• Rear Side Marker Lights: Trucklite 3050 LED Rivet Mounting*
• Rear Lights: (3) Trucklite 3050 LED Rivet Mounting*
• Rear Stop/Turn/Tail lIghts: Trucklite 4050 LED Rivet Mounting*
• ABS Light: Trucklite 30200Y with 10728 Lamp Mounting Bracket & ABS Decal*
• License Light: Trucklite 15040 LED*
• Registration Holder: (1) Trucklite 97960*
• Decals Standard: Factory Furnished
• Conspicuity Markings: Conspicuity Stripe per Federal Regulation
• 20’-40’ mechanism activated by electric switch

PAINT/OTHER:

• Metal Preparation: Commercial Shot Blast
• Primer: Zinc Phosphate Epoxy
• Top Coat: Plural Component Acrylic Urethane
• Paint Color: Black, unless otherwise requested

*or equivalent
