PRODUCT

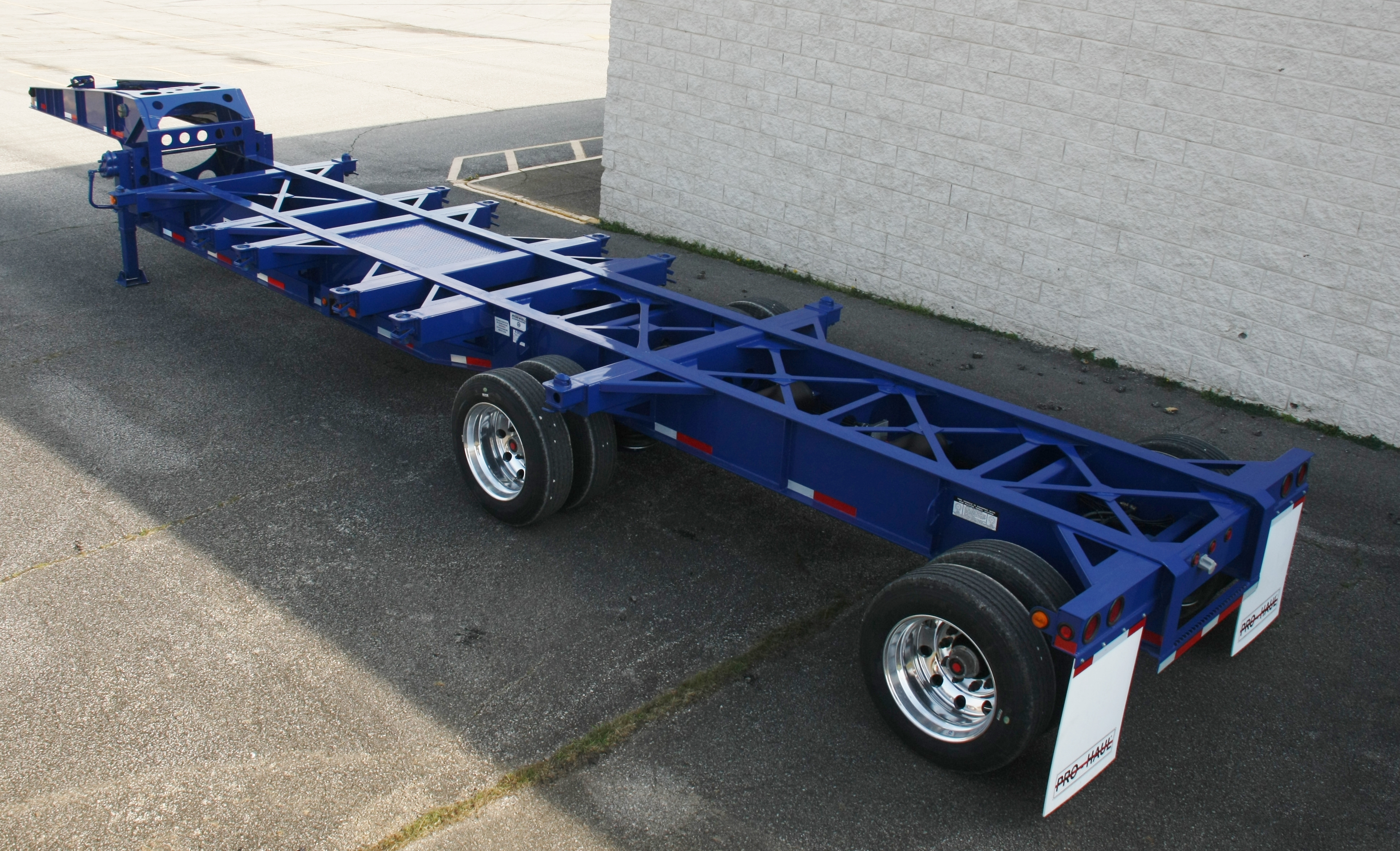

• Feature: New Chassis designed for the 21st century
• Designed for repeated use in transportation of frac sand and ISO 20' Tanks
• Ability to haul 2- 8' Sand Bins or 1- 10' Sand Bin or 1- 20' ISO Container/Tank
• Meets DOT requirements
• GVWR: 65,000 LB
• Standard US VIN Plate
• Tare Weight: 9,925 (All Aluminum Wheels)

GEOMETRY

• Overall Length & Type: 43'
• Frame Bogie Type: Widespread Axle Bogie (2-Axle) with 25,000 LBS axles
• Overall Frame Width: 96” over Bolster
• Main Frame Width: 43”
• Maximum Rear Height: 41 1/2”
• King Pin Location: 18" from front of chassis
• Cross member: Fabricated channel cross member with triangle gusset, A572GR50
• Cross member Thickness: 3/16”
• L/G Support Bracket: 1/4" box type bracket
• Rear Gusset Spec: 3/16"
• Bolster Spec: 7" Height X 7" Deep
• Bolster Material: 3/16” x 7" Square Tubing (A572GR50)
• Bolster Locking Device: Twistlock
• License Plate Bracket: Standard Install Location
• Mud flaps: 24"x30" white factory furnished mud flaps mounted on vertical steel flange with horizontal member
• Rear Under Ride Bumper: Weld on Vertical steel flange with horizontal member
• Horizontal Member: 4” C-channel horizontal step guard

RUNNING/SUSP

• Axle Spacing: 10'2” Axle Spacing
• Axle ABS System: Widespread Axle with 2S1M ABS System
• Suspension Spec: Ridewell RAR 240 25K
• Spring Spec: Goodyear or Firestone air springs
• Axle Supplier: Butler*
• Axle Supplier: Butler*
• Axle-General Spec: Axle - Widespread Axle (2) Axle w/ 2S1M
• Axle-Track Length: 71 1/2"
• Axle-Wall Thickness: 5/8"
• Axle Spindle: Tapered Spindle 5"
• 5" Round 25,000 LB axle with oil bath hubs
• Brake Lining: 16 1/2" x 7" Rockwell Q Type shoes*
• Brake Control System: 16 1/2" x 7" quick change brakes, 2S/1M Haldex ABS*
• Air Tank: (2) 9 1/2"x27" air tanks
• Air Line: Black Gates Nylon DOT Tubing
• Air Hose: Standard Hose Application
• Slack Adjuster: Meritor Style Auto - 5 1/2", 28 Spline*
• Brake Chamber: TGI 30/30 Standard Stroke*
• Brake Chamber Stroke Length: Standard Stroke length
• Brake Chamber Other Spec: Manufacturer's Standard Components
• Wheel: 10 Stud Hub Piloted Outboard Iron Hub with 16 1/2" x 7" cast steel brake drum
• Lubrication Spec: Shell Spirax 80w-90*
• Wheel Seals: Stemco*
• Hub Cap: Stemco metal 340-4009 oil type hub cap*
• Gladhands: Velvac Gladhands, Service 035042 & Emergency 035045*
• Gladhand Location: Located on mount plate at front of chassis

TIRES & WHEELS

• Tires: Factory Furnished
• Tire Manufacturer: Atlas Tire*
• Tire Size: 255/70R22.5
• Tire Inflation System: None
• Wheel Size: 8.25 x 22.5
• Hub Type: Hub piloted for disc wheels
• Wheel Color: Aluminum

UPPER COUPLER

• Pick-Up Plate: 5/16" thick pick-up plate with 2" diameter drain holes

LANDING GEAR

• L/Gear Shoes: 10" x 10" sand shoe low profile
• L/Gear Ground Clearance: Approximately 12" Ground Clearance
• Landing Gear: Butler 50,000 LB lift/180,000 LB static with 2 speed gearbox*
• Crank Handle: Located at drivers side

ELEC/AIR

• All LED Lights
• Harness-Chassis: Molded Truck Lite 88 Series Harness*
• 7-Way Connector Pollack 7-Way without Circuit Breakers*
• Front Marker Lights: Trucklite 3050A LED Rivet or Grommet Mounting, depending on inventory*
• Mid-Marker Lights: Trucklite 3050A LED Rivet or Grommet Mounted (depending on inventory)/Trucklite 6050A MidTurn with TL 99152 WIDE TURN LENS*
• Rear Side Marker Lights: Trucklite 3050 LED Rivet or Grommet Mounting, depending on inventory*
• Rear Lights: (3) Trucklite 3050 LED Rivet or Grommet Mounting, depending on inventory*
• Rear Stop/Turn/Tail Lights: Trucklite 4050 LED Rivet or Grommet Mounting, depending on inventory*
• ABS Light: Trucklite 30200Y with 10728 Lamp Mounting Bracket & ABS Decal*
• License Light: Trucklite 15040 LED*
• Registration Holder: (1) Trucklite 97960*
• Decals Standard: Factory Furnished
• Conspicuity Markings: Conspicuity Stripe per Federal Regulation

PAINT

• Metal Preparation: Commercial Shot Blast
• Primer: Zinc Phosphate Epoxy
• Top Coat: Plural Component Acrylic Urethane
• Paint Color: Black, unless otherwise requested

+ PRO-HAUL reserves the right to correct all errors and omissions or equivalent
